Oocyte Retrieval Needles

High quality stainless steel Kitazato OPU Needles provide a safe and efficient oocyte retrieval while minimizing trauma and pain, due to their triple cut blade, continuous aspiration flow and unique Thin Wall design.

References Downloads

We offer the widest range of Oocyte Retrieval Needles with single lumen (from 16G to 21G) and double lumen (from 16G to 18G).

The thinner diameters are ideal for patients with low response, natural cycles or for working without anesthesia during the ovarian puncture.

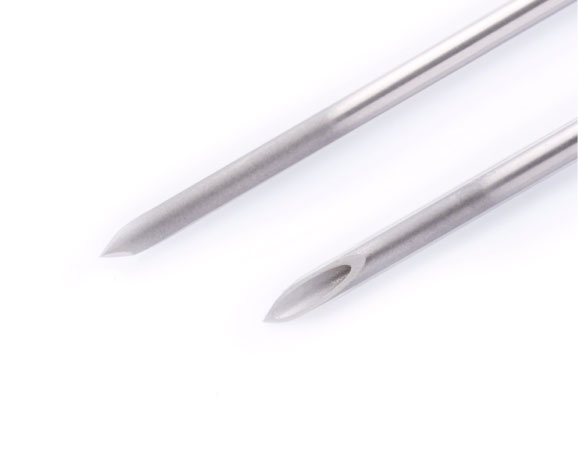

Why Use Kitazato Small Gauge Needles?

Learn about the benefits of oocyte pick-up using smaller gauge Kitazato Oocyte Retrieval Needles.

Main Features

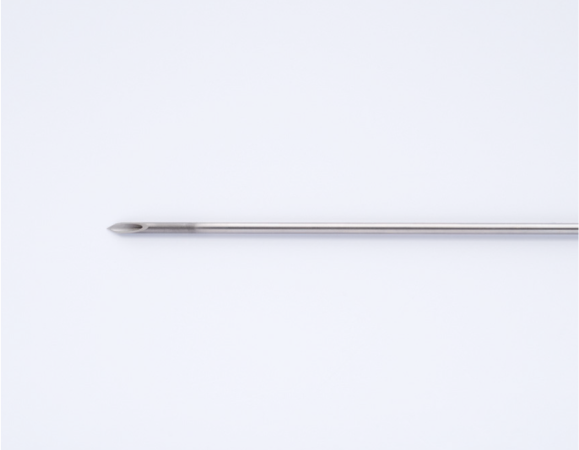

Smooth echogenic marking to the tip of the needle

Guarantees high ultrasound visibility and a safer approach to the follicle, while reducing resistance to the surrounding tissue, thanks to
the marking to the very tip of the needle.

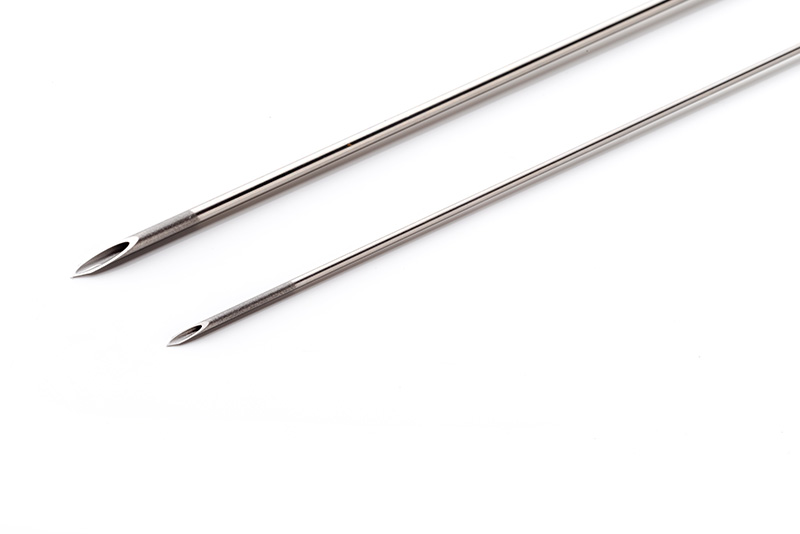

Triple cut blade

Ensures a clean and smooth puncture minimizing trauma and improves patient recovery after oocyte retrieval.

Smooth echogenic marking to the tip of the needle

Guarantees high ultrasound visibility and a safer approach to the follicle, while reducing resistance to the surrounding tissue, thanks to
the marking to the very tip of the needle.

Triple cut blade

Ensures a clean and smooth puncture minimizing trauma and improves patient recovery after oocyte retrieval.

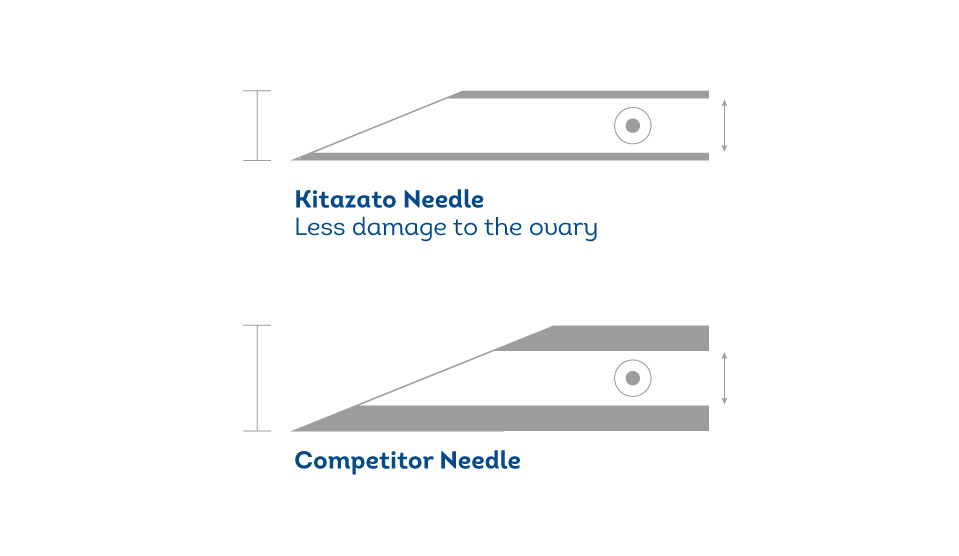

Less Pain with Thin Wall Design

A Kitazato needle offers the same inner diameter width for the aspiration opposed to other brand thicker needles.

This allows oocyte retrieval to be carried out with a smaller gauge needle and therefore reduces the possibility of bleeding and the risk
of injuries to the uterine lining, whilst minimizing stress in the oocyte during aspiration.

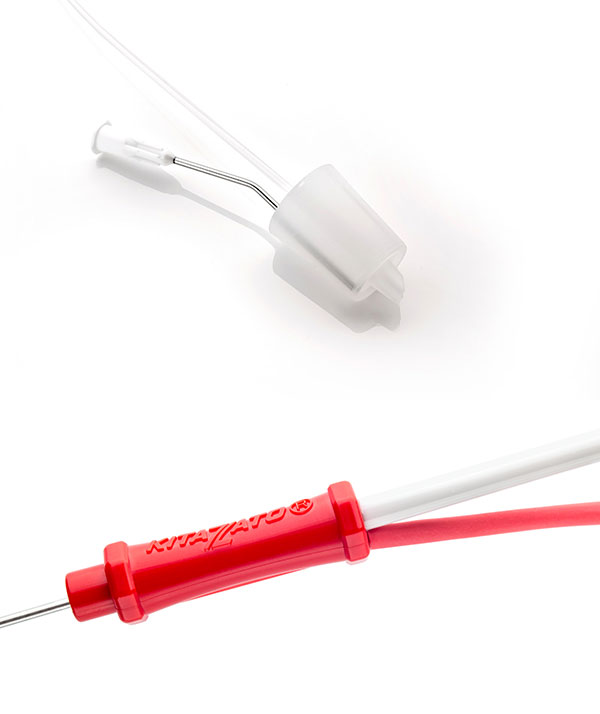

Silicon bung with syringe connection

Facilitates the flushing of the needle.







Ergonomic handle with position marker

Provides additional control throughout the oocyte pick-up and helps to control the position of the needle blade.

Silicon bung with syringe connection

Facilitates the flushing of the needle.







Ergonomic handle with position marker

Provides additional control throughout the oocyte pick-up and helps to control the position of the needle blade.

Single Lumen Needles

Kitazato single lumen needles provide a reliable oocyte retrieval whilst guaranteeing a continuous aspiration flow to minimize oocyte stress.

Available from 16G to 21G and with different lengths of aspiration lines.

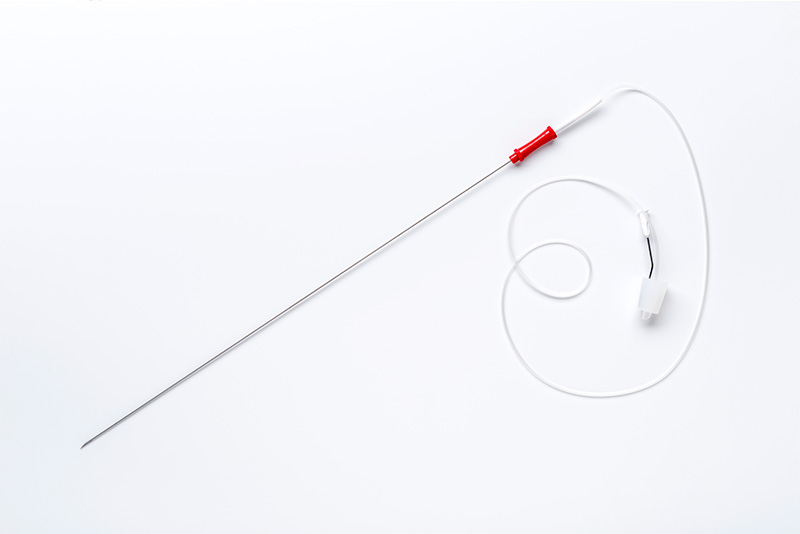

Pump Aspiration Single Lumen​

For pump assisted aspiration of oocytes with single aspiration line.

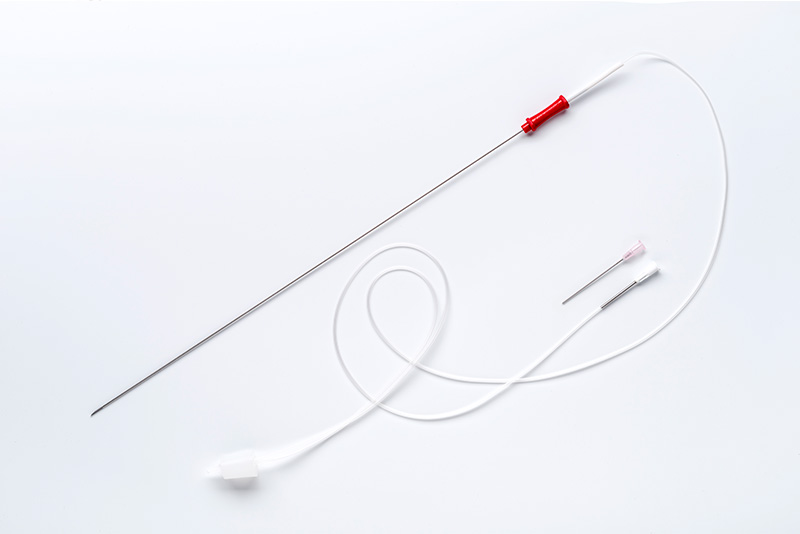

Pump Aspiration with Vacuum Line

For pump assisted aspiration of oocytes with an incorporated 60 cm vacuum line.

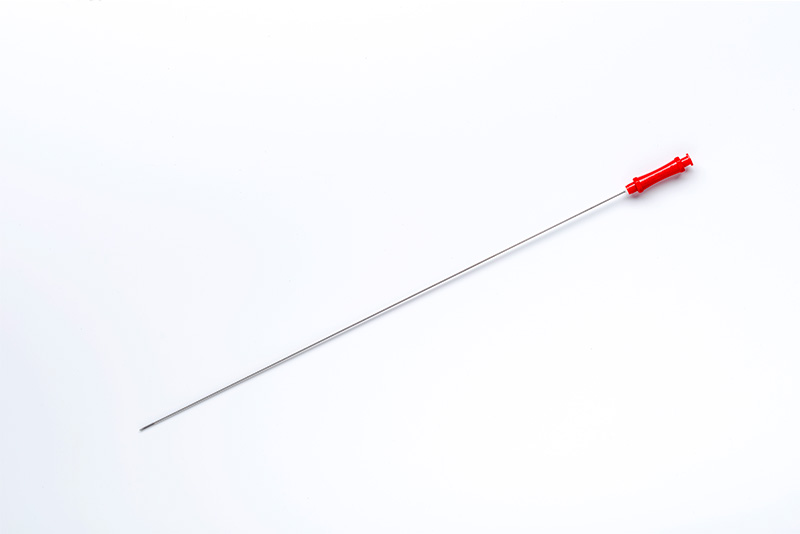

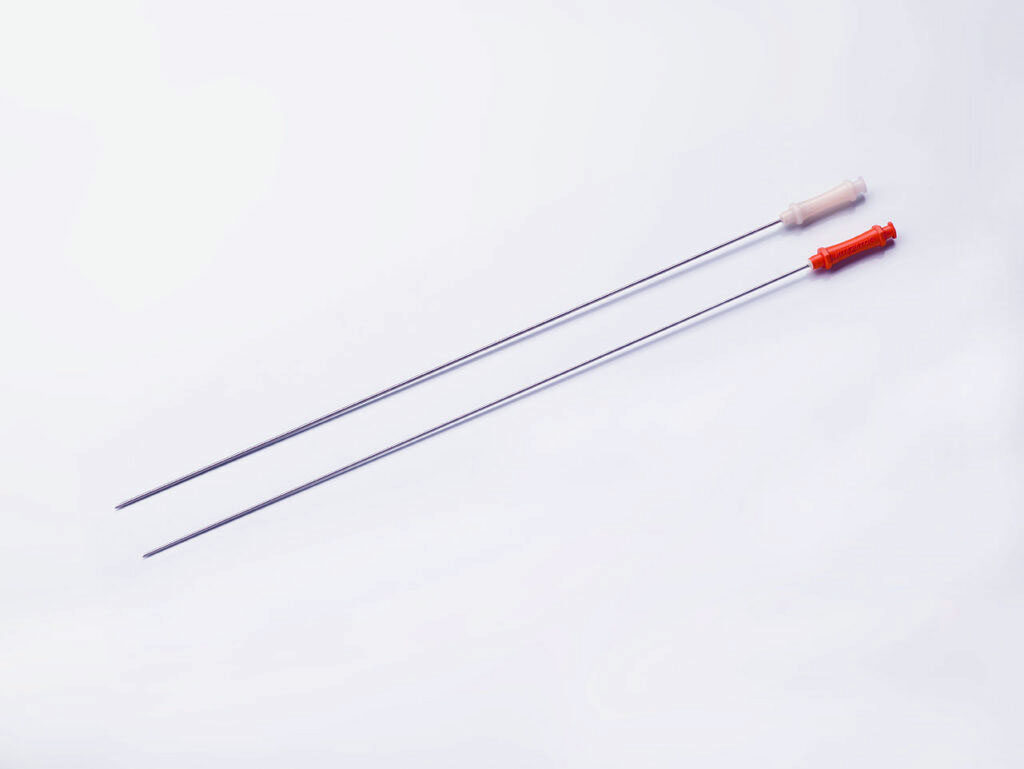

Luer Lock
Connection

For a manual control of the oocyte aspiration with a syringe connected to the luer lock.

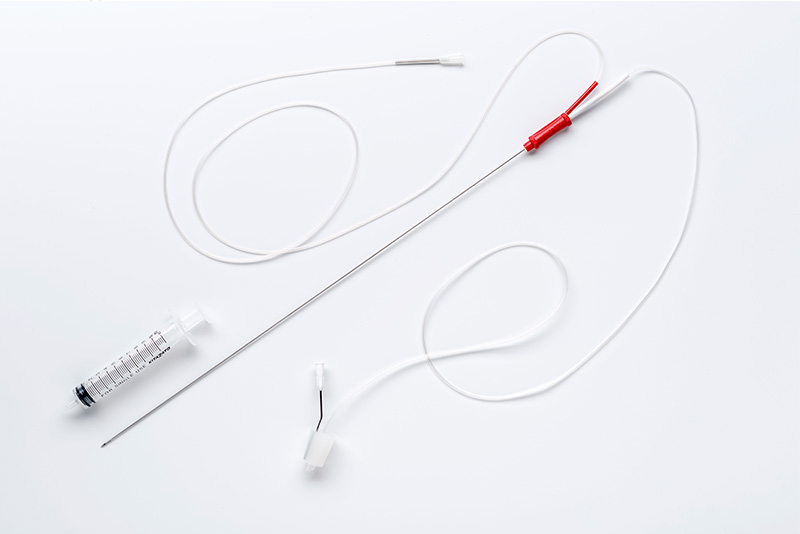

Double Lumen Needles

Kitazato double lumen needles allow oocyte pick-up and follicle flushing in one procedure.

Larger inner channel allows oocyte retrieval while outer channel is intended for follicle flushing. Available from 16G to 18G.

Special Procedure Needles

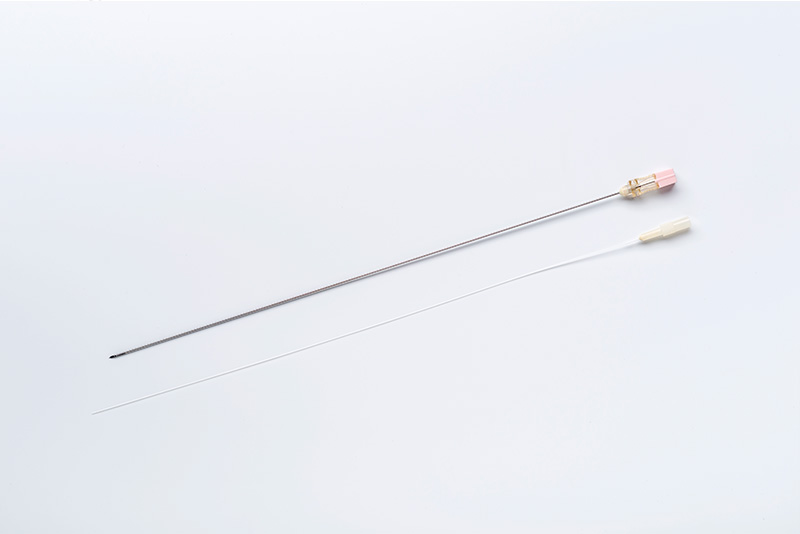

Towako Method

Towako Method is used for transferring embryos into the endometrium through the myometrium with a set of needle and embryo transfer catheter.

This product was developed by Dr. Osada Kato from the Kato Ladies Clinic, Japan.

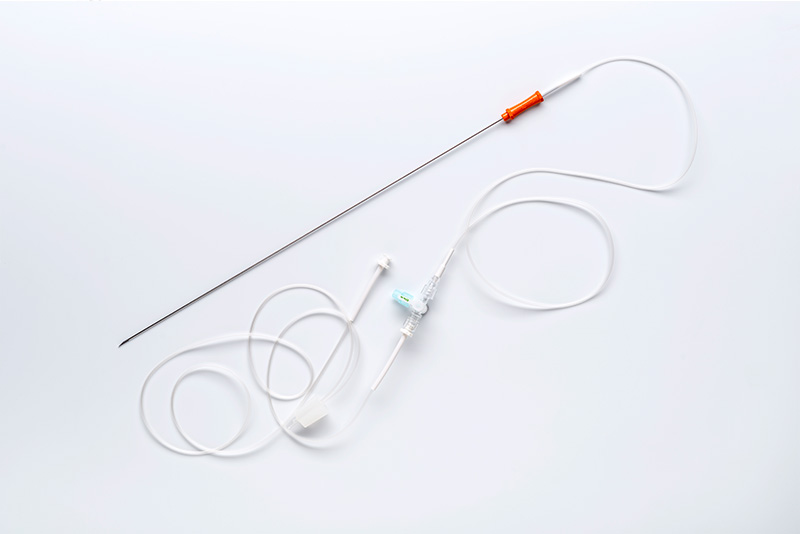

3 Way Stopcock Valve

Needle with a 3 way stopcock valve. Thanks to its key, it is possible to regulate the flow, allowing alternation between oocyte aspiration and follicular cleaning through a single channel.

Available in an external diameter of 17G and 80cm aspiration tube (other lengths available upon request).

IVM Needles

Kitazato offers IVM needles for the collection of immature oocytes in in vitro maturation cycles. Consisting of a 27.5cm 17G needles, within another of 35cm long 20G needle, IVM needles allow greater mobility control of non-stimulated ovaries.

Thanks to its high visibility, it is possible to reduce the puncture operation time, crucial in this type of cycle.

The IVF Lifecycle

Kitazato offers a broad selection of quality products that maximize success at every step of the IVF Lifecycle. Learn more about the products involved in each IVF procedure.

Oocyte Retrieval
More info

Order Number Gauge
(G)		 Length
(cm)		 Aspiration Line
(cm)		 Quantity
326350 16 35 80* 10
327350 17 35 80* 10
328350 18 35 80* 10
329350 19 35 80* 10
320350 20 35 80* 10
320300 20 30 80* 10
321300 21 30 80* 10

Order Number Gauge
(G)		 Length
(cm)		 Aspiration Line
(cm)		 Quantity
336350 16 35 80* + 60 10
337350 17 35 80* + 60 10
338350 18 35 80* + 60 10
339350 19 35 80* + 60 10
330300 20 30 80* + 60 10

Order Number Gauge
(G)		 Length
(cm)		 Aspiration Line
(cm)		 Quantity
316001 16 32.5 – 10
317001 17 32.5 – 10
318001 18 32.5 – 10
319001 19 32.5 – 10
310001 20 32.5 – 10

Order Number Gauge
(G)		 Length
(cm)		 Aspiration Line
(cm)		 Quantity
326001 Type2-v10 16 35 80* 10
327001 Type2-v11 17 35 80* 10
328001 Type2-v12 18 35 80* 10
329001 Type2-v13 19 35 80* 10
320001 Type2-v14 20 35 80* 10
320002 Type2-v15 20 30 80* 10
321002 Type2-v16 21 30 80* 10
322002 Type2-v17 22 30 80* 10

Order Number Gauge
(G)		 Length
(cm)		 Aspiration Line
(cm)		 Flushing Line
(cm)		 Quantity
376350 16 35 80 100 10
377350 17 35 80 100 10
378350 18 35 80 100 10

Order Number Product Name Gauge
(G)		 Length
(cm)		 Aspiration Line
(cm)		 Quantity
268003 Towako Method

(Includes 2Fr Catheter)

 18 32.5 – 10
367350 Manual Aspiration Set for Syringe 17 35 60* 10
357353 Aspiration Sets with Stopcock 17 35 80 + 40* with stopcock 10
347275 IVM Needle 17 & 20 27.5 & 35 30 10

*Different lengths of aspiration line available.

Please note that products may only be available in selected countries.

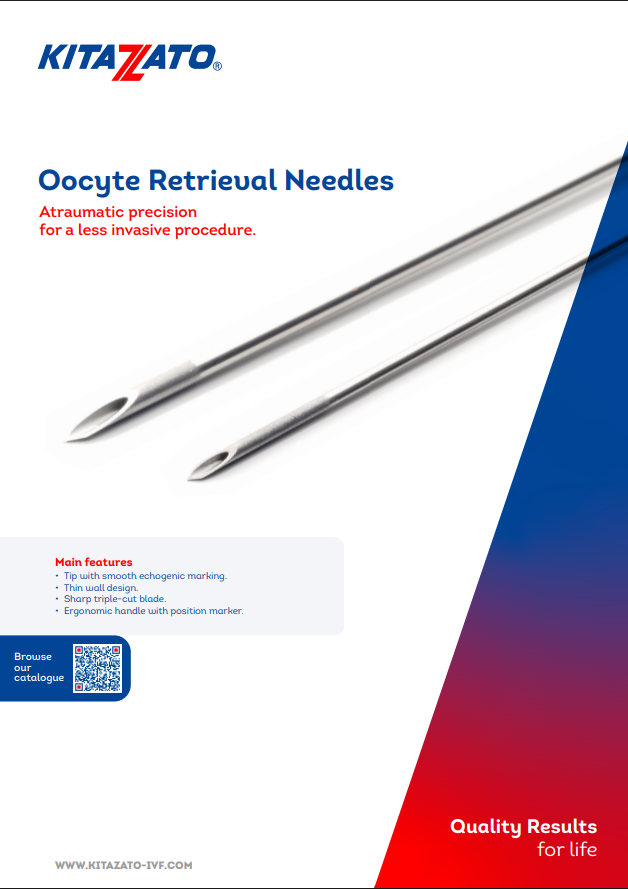

Oocyte Retrieval Needles and Catheters Catalogue (EMEA & ASIA Only)

Download

Oocyte Retrieval Needles and Catheters Catalogue (USA Only)

Download

OPU Needles IFU (Multilanguage)

Download

Recommended Pressures

Download

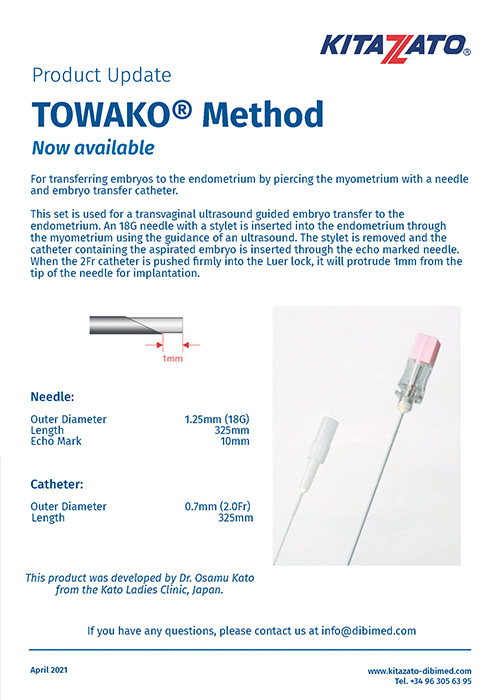

Towako Method Flyer

Download
