Micro Tools

Holding Pipettes

For holding oocyte, embryo or blastocyst during intracytoplasmic sperm injection or PGT techniques.

High stability during ICSI and PGT micromanipulations when a reliable steadiness of oocytes or embryos is needed.

Main characteristics

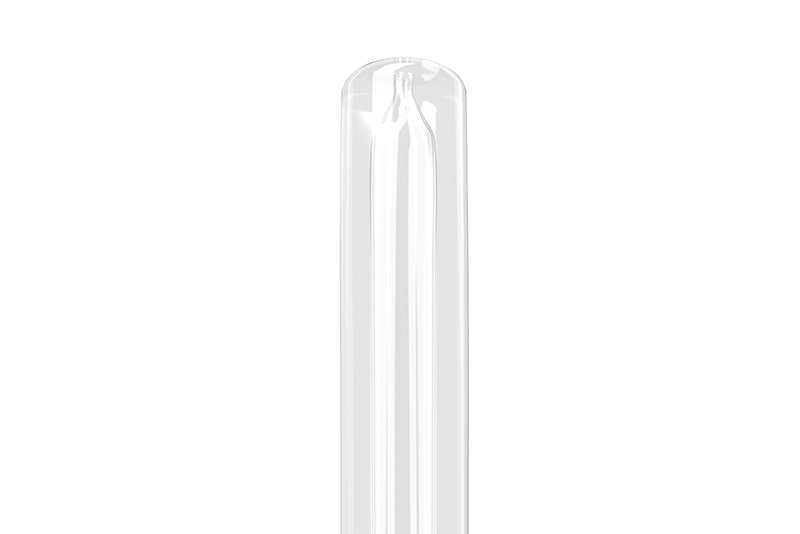

  • Smooth polished tip
  • High level of control of specimen
  • Different diameters available for different techniques
  • Smaller diameter ideal for holding an oocyte
  • Larger diameter ideal for embryo biopsy procedures
  • Tip to elbow length range: from 0.50 mm to 1 mm

The IVF Lifecycle

Kitazato offers a broad selection of quality products that maximize success at every step of the IVF Lifecycle. Learn more about the products involved in each IVF procedure.

Order Number Code Inner Diameter
(µm)
Outer Diameter
(µm)
Tip Bend Angle
(°)
Tip to Elbow Length
(mm)
Quantity
95310 MT-HD-90-30 15-20 90 30 0.60 10
95311 MT-HD-90-35 15-20 90 35 0.60 10
95300 MT-HD-100-30 15-20 100 30 0.60 10
95301 MT-HD-100-35 15-20 100 35 0.60 10
95302 MT-HD-120-30 15-20 120 30 0.60 10
95303 MT-HD-120-35 15-20 120 35 0.60 10
95360 MT-HD-120W-30 25-30 120 30 0.60 10
95361 MT-HD-120W-35 25-30 120 35 0.60 10

Please note that products may only be available in selected countries.
